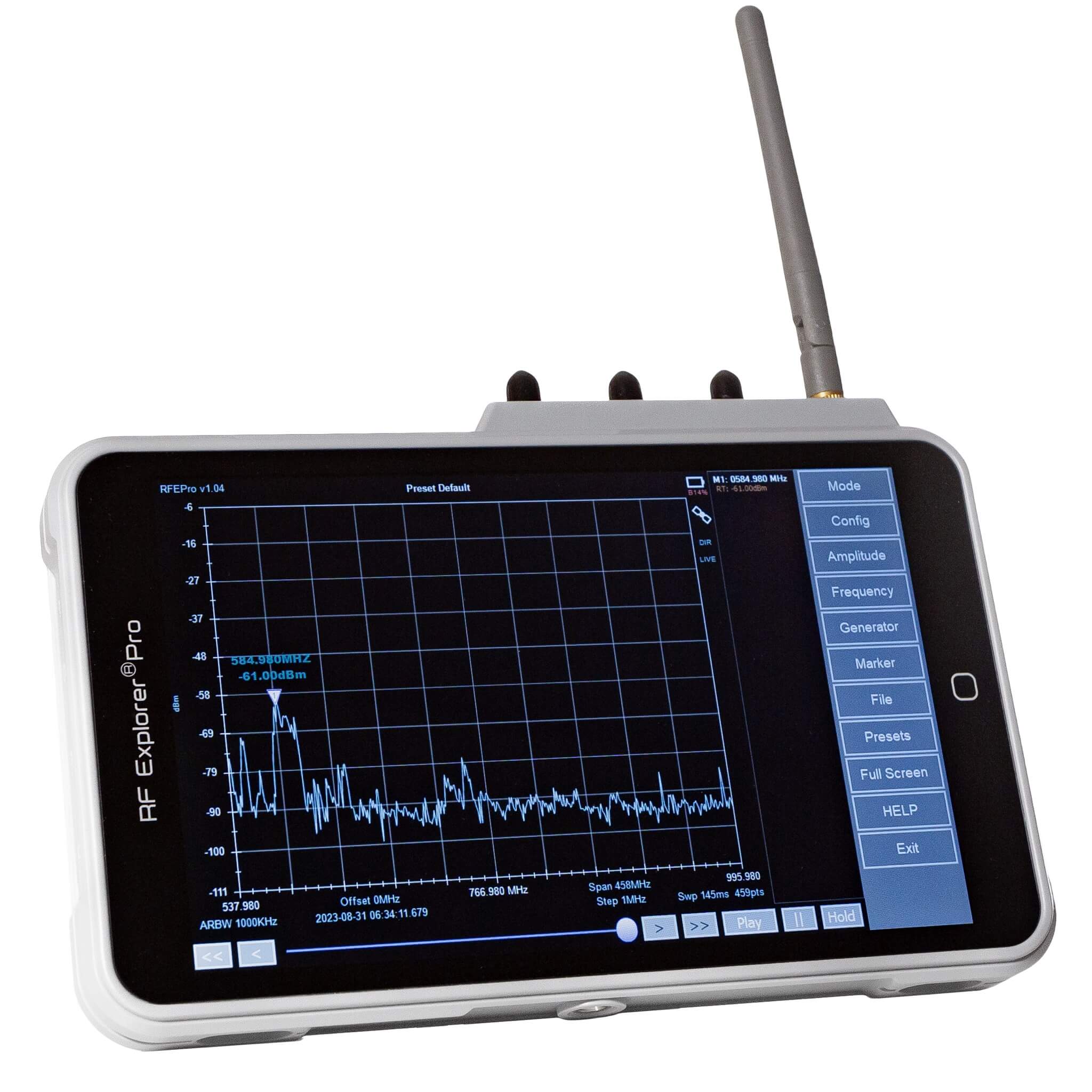

The RF Venue RF Explorer Pro is a 3rd generation, high-performance instrument for wireless audio system design, deployment, and monitoring. With its integrated 15 MHz to 6 GHz Spectrum Analyzer, Tracking Generator, and Frequency Coordination and WiFi Analysis tools, it offers advanced functionality with an intuitive touch screen to support any wireless microphone or in-ear monitor system.

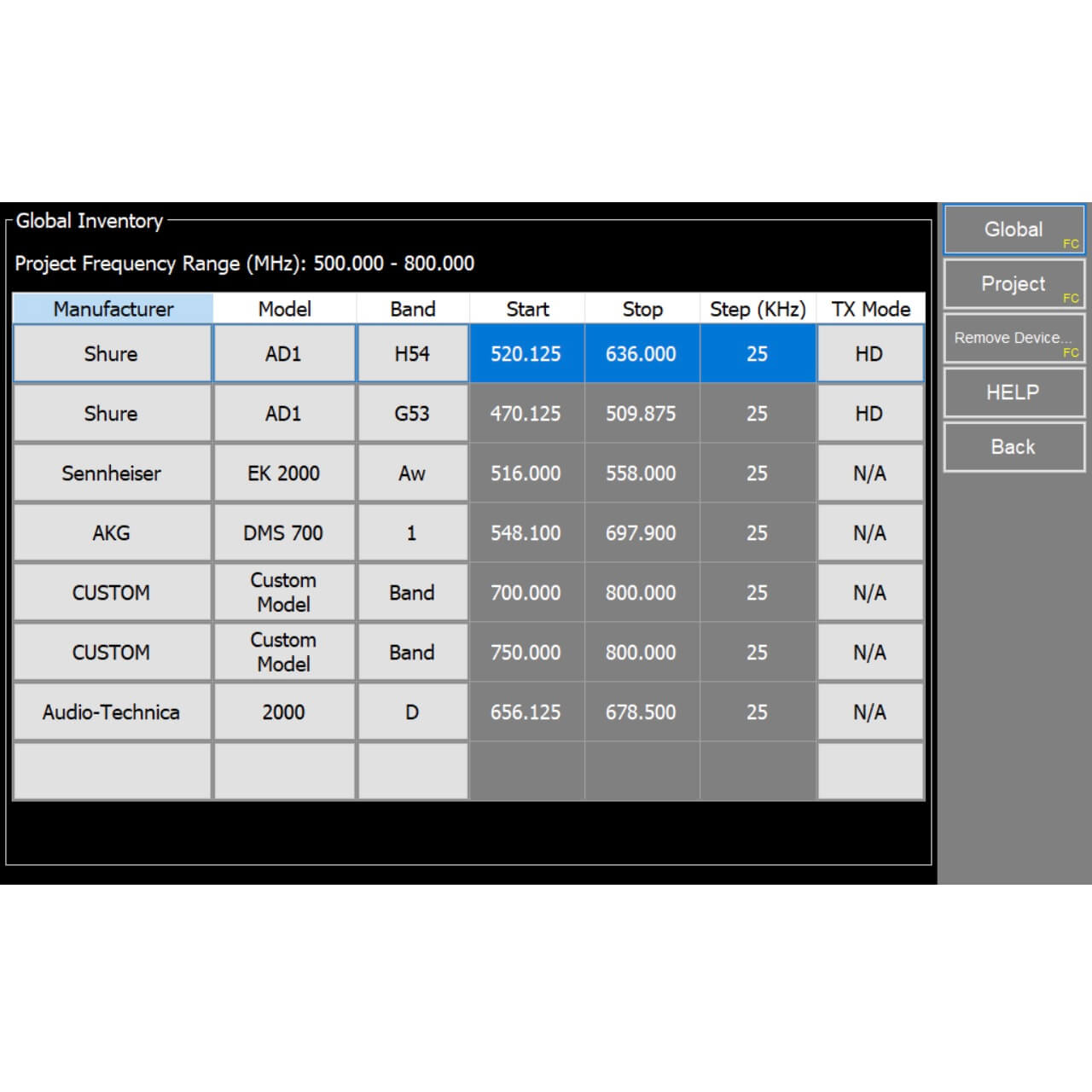

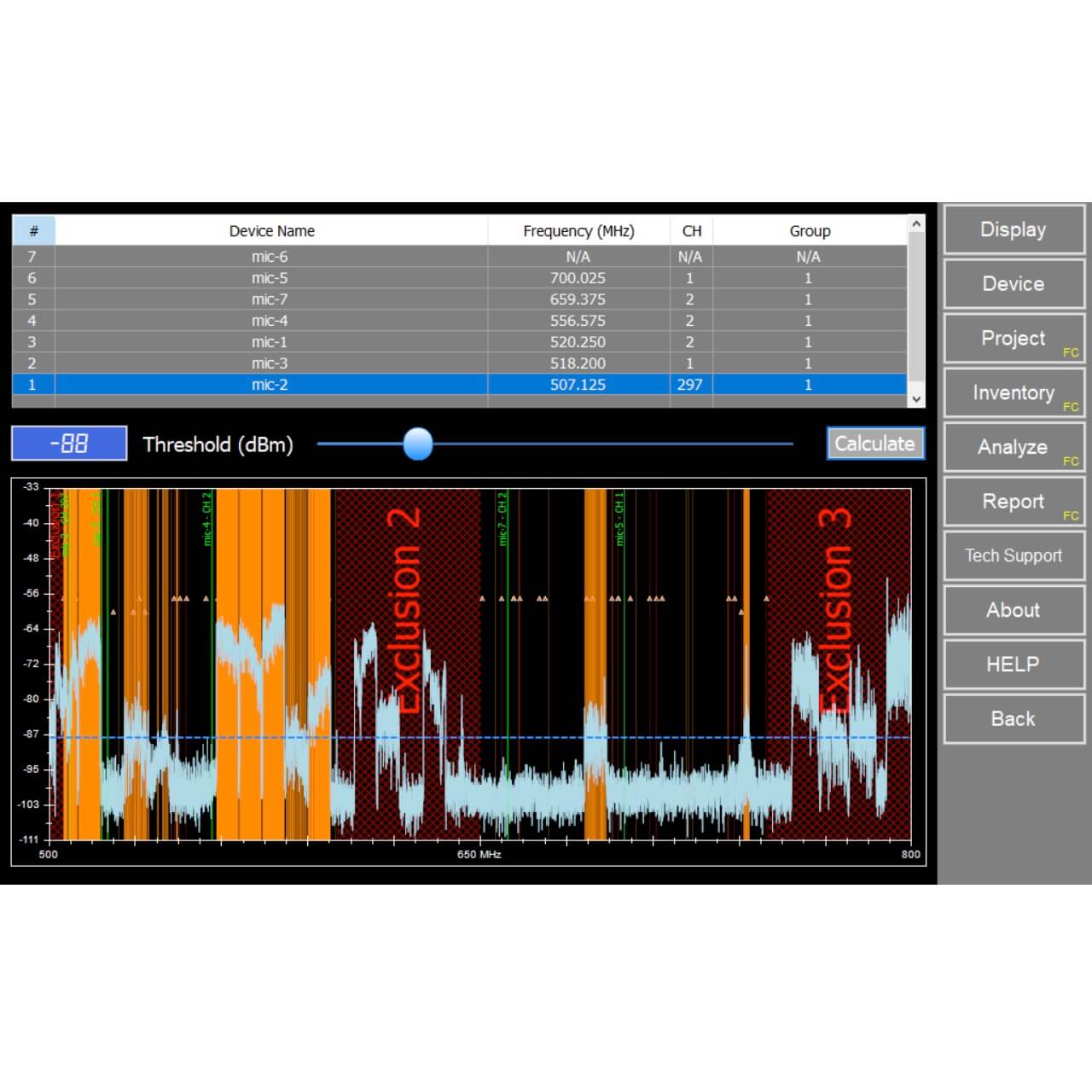

Built-in Frequency Coordination
The high-performance CPU enables fast frequency coordination calculations, real-time interference monitoring, and intermodulation analysis right out of the box.
Record/Save/Replay Spectrum Data
Automatically save scan data on RAM for easy replay of any event. Additionally, the data can be manually or automatically saved in binary and CSV formats for later use.
VNC Capable for Remote Network Control
Control the RF Explorer Pro over a network connection, simply connect a USB to Ethernet adapter and configure over VNC

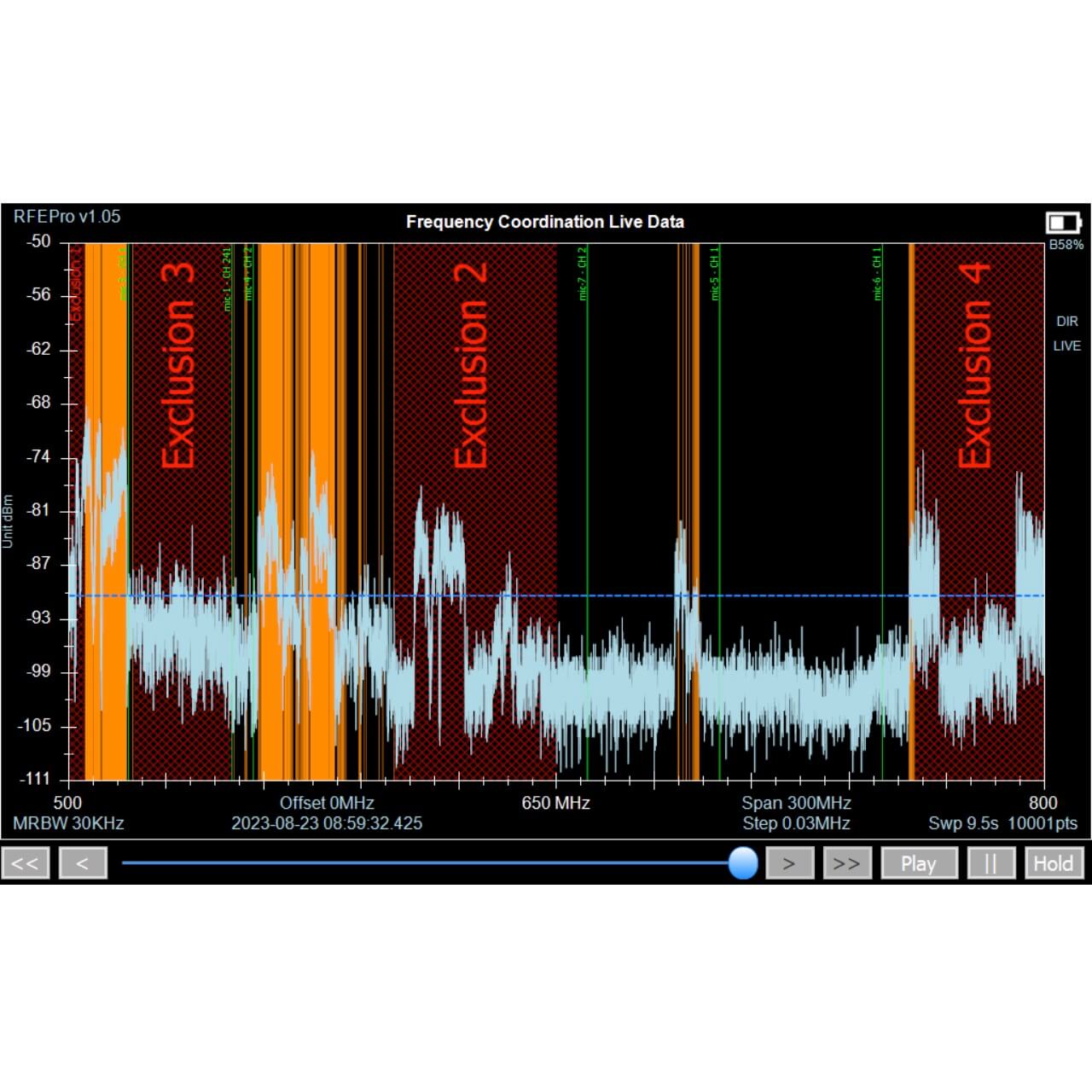

Continuous Monitoring and Alerting
Stay informed with reliable alerts, including configurable limit lines, to ensure you never miss critical issues during an event.
Export Data
Seamlessly export all captured data to a USB drive for use in other software applications such as RF Venue's free online Wireless System Builder, Shure® Wireless Workbench, Audio Technica® Wireless Manager, Excel, and more.

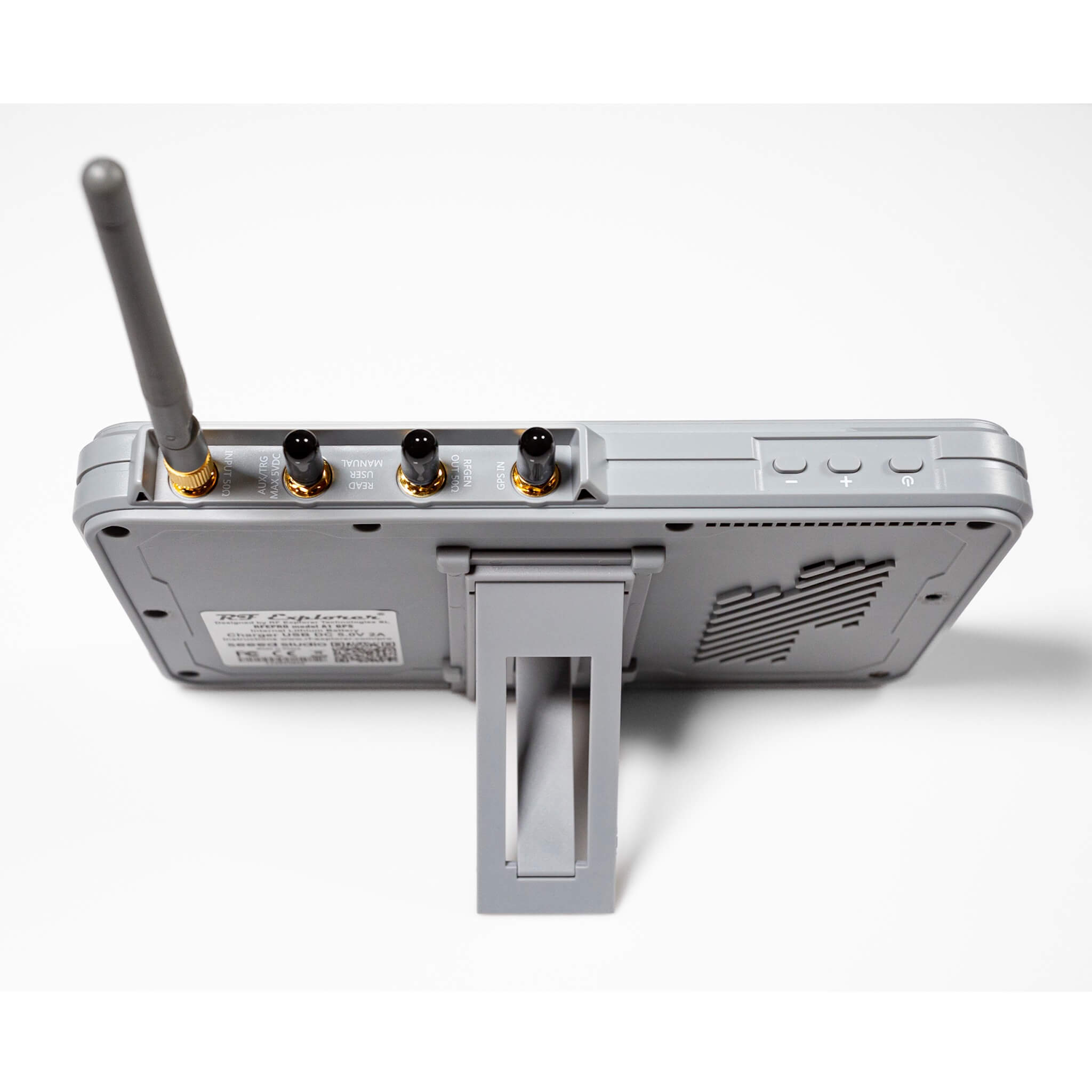

SMA Spectrum analyzer input
Interface with BNC adapter or jumper cable to analyze RF from any part of your wireless audio system. Patch into antenna distros, receive antennas, bandpass filters, RF over fiber converters or other sources to directly measure performance of your system, debug issues, and fine tune performance.
HDMI output
Connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range.
What's included

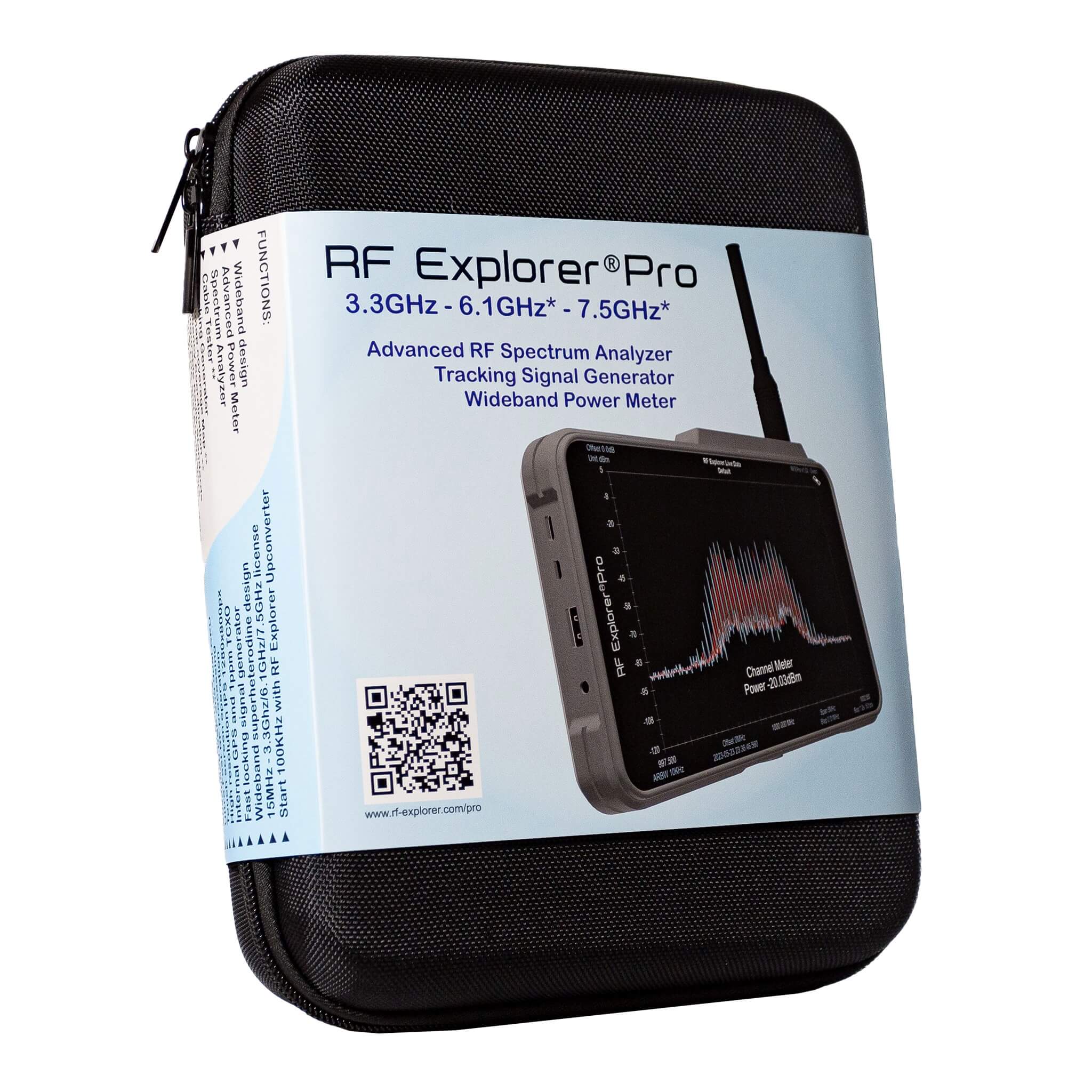

USB charger and padded carrying case included.
